UIView不同方向的导角

前言

开发中总因为一些比较蛋疼的导角问题而困扰着我们,尤其是我们要给一个UIView导角成 左上 、左下。。。

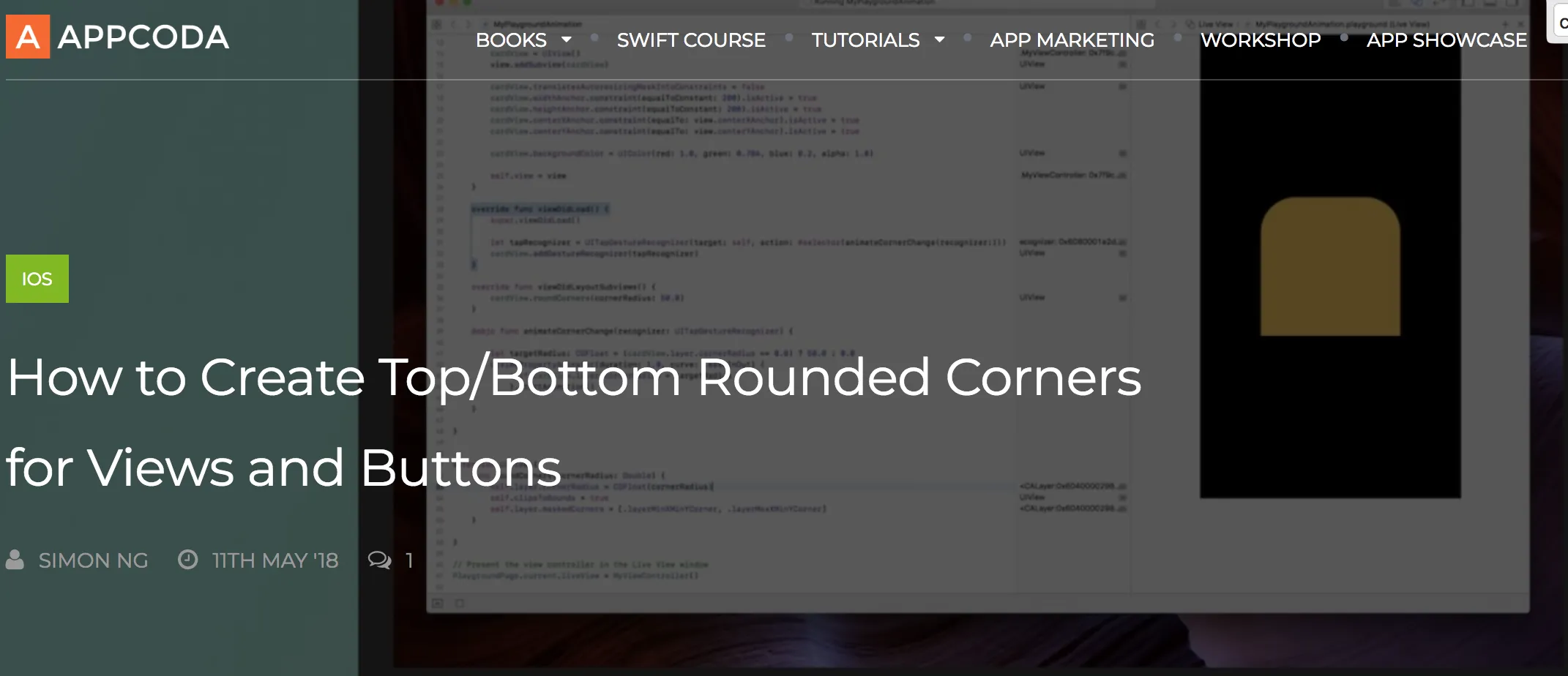

这种需求很值得用代码实现一下, 今天突然在AppCode找到了一篇好文章.于是有了下文

通常导角

1
2
self.view.cornerRadius = 20.0
self.view.clipToBounds = true

这两行代码是全方向导角

如果像要搞成不同方向的话可以用iOS11 新的API和 iOS11以前的CAShapeLayer画贝赛尔曲线来解决

首先我们要创建一个UIView

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class ViewController: UIViewController {

    var cardView: UIView!

    override func viewDidLoad() {
        super.viewDidLoad()

        cardView = UIView()
        view.addSubview(cardView)
        cardView.translatesAutoresizingMaskIntoConstraints = false
        //把View居中
        cardView.widthAnchor.constraint(equalToConstant: 200).isActive = true
        cardView.heightAnchor.constraint(equalToConstant: 200).isActive = true
        cardView.centerXAnchor.constraint(equalTo: view.centerXAnchor).isActive = true
        cardView.centerYAnchor.constraint(equalTo: view.centerYAnchor).isActive = true
        cardView.backgroundColor = UIColor(red: 1.0, green: 0.784, blue: 0.2, alpha: 1)
    }
}

iOS11 以后苹果提供了一个UIView的属性叫maskedCorners用于CALayer的动画相关.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public struct CACornerMask : OptionSet {

    public init(rawValue: UInt)


    public static var layerMinXMinYCorner: CACornerMask { get }

    public static var layerMaxXMinYCorner: CACornerMask { get }

    public static var layerMinXMaxYCorner: CACornerMask { get }

    public static var layerMaxXMaxYCorner: CACornerMask { get }
}

下面我说一下

  • layerMinXMinYCorner 底部右侧 的圆角 -> 右下角
  • layerMaxXMinYCorner 顶部右侧 的圆角 -> 右上角
  • layerMinXMaxYCorner 底部左侧 的圆角 -> 左下角
  • layerMinXMinYCorner 顶部左侧 的圆角 -> 左上角

一般我们都为UIView写个 extension

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
extension UIView {
    func roundCorners(cornerRadius: Double) {
        self.layer.cornerRadius = CGFloat(cornerRadius)
        self.clipsToBounds = true

        if #available(iOS 11.0, *) {
            self.layer.maskedCorners = [.layerMinXMinYCorner, .layerMaxXMinYCorner]
        } else {
            let path = UIBezierPath(roundedRect: self.bounds, byRoundingCorners: [.topLeft, .topRight], cornerRadii: CGSize(width: cornerRadius, height: cornerRadius))
            let maskLayer = CAShapeLayer()
            maskLayer.frame = self.bounds
            maskLayer.path = path.cgPath
            self.layer.mask = maskLayer
        }

    }
}

这里区分了iOS11之前和之后的两种搞法.

之前的话我们都是用一个贝塞尔曲线画path.然后创建CAShapeLayer 给self.layer.mask做一种透明的遮罩来解决不同方向导角问题.

添加动画效果的导角

我们在原ViewDidLoad()方法里面加个手势.

并写好触发的事件, 完整的代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
import UIKit

class ViewController: UIViewController {

    var cardView: UIView!

    override func viewDidLoad() {
        super.viewDidLoad()

        cardView = UIView()
        view.addSubview(cardView)
        cardView.translatesAutoresizingMaskIntoConstraints = false
        cardView.widthAnchor.constraint(equalToConstant: 200).isActive = true
        cardView.heightAnchor.constraint(equalToConstant: 200).isActive = true
        cardView.centerXAnchor.constraint(equalTo: view.centerXAnchor).isActive = true
        cardView.centerYAnchor.constraint(equalTo: view.centerYAnchor).isActive = true
        cardView.backgroundColor = UIColor(red: 1.0, green: 0.784, blue: 0.2, alpha: 1)


        let tapRecognizer = UITapGestureRecognizer(target: self, action: #selector(animateCornerChange(recognizer:)))
        cardView.addGestureRecognizer(tapRecognizer)

    }



    @objc func animateCornerChange(recognizer: UITapGestureRecognizer) {
        let targetRadius: Double = (cardView.layer.cornerRadius == 0.0) ? 100.0:0.0

        if #available(iOS 10.0, *) {
            UIViewPropertyAnimator(duration: 0.4, curve: .easeInOut) {
                self.cardView.roundCorners(cornerRadius: targetRadius)
                }.startAnimation()
        } else {
            UIView.animate(withDuration: 1.0, delay: 0.0, options: .curveEaseInOut, animations: {

            }, completion: nil)
        }
    }
}

extension UIView {
    func roundCorners(cornerRadius: Double) {
        self.layer.cornerRadius = CGFloat(cornerRadius)
        self.clipsToBounds = true

        if #available(iOS 11.0, *) {
            self.layer.maskedCorners = [.layerMinXMinYCorner, .layerMaxXMinYCorner]
        } else {
            let path = UIBezierPath(roundedRect: self.bounds, byRoundingCorners: [.topLeft, .topRight], cornerRadii: CGSize(width: cornerRadius, height: cornerRadius))
            let maskLayer = CAShapeLayer()
            maskLayer.frame = self.bounds
            maskLayer.path = path.cgPath
            self.layer.mask = maskLayer
        }

    }
}

这里主要强调一下动画的新API

iOS10之后U增加一个新的动画效果API

1
2
3
4
UIViewPropertyAnimator(duration: 0.4, curve: .easeInOut) {
//这里写相关View的操作代码 。。。eg:下面代码
                self.cardView.roundCorners(cornerRadius: targetRadius)
                }.startAnimation()

iOS之前可以通过古老的API来实现

1
2
3
4
UIView.animate(withDuration: 1.0, delay: 0.0, options: .curveEaseInOut, animations: {
//这里写相关View的操作代码 。。。eg:下面代码
                self.cardView.roundCorners(cornerRadius: targetRadius)
            }, completion: nil)

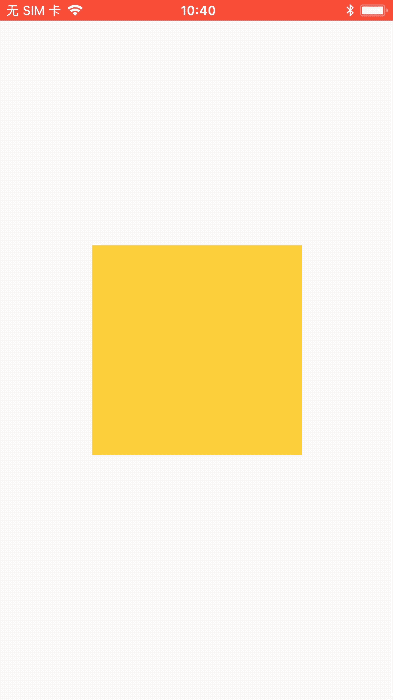

最终的效果

总结

iOS一些简单的动画导角比较常用所以记录下来,希望大家多多指教

本文Demo
